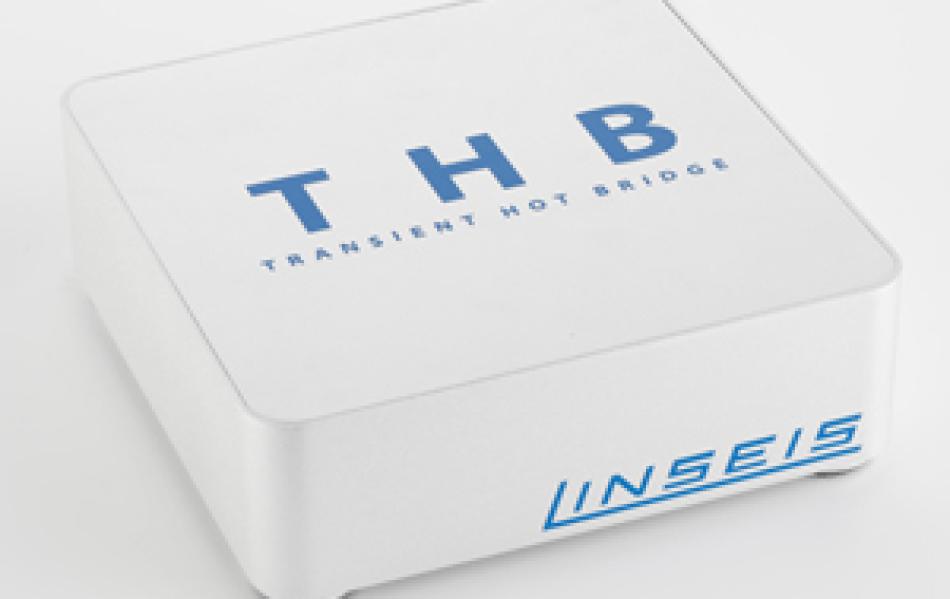

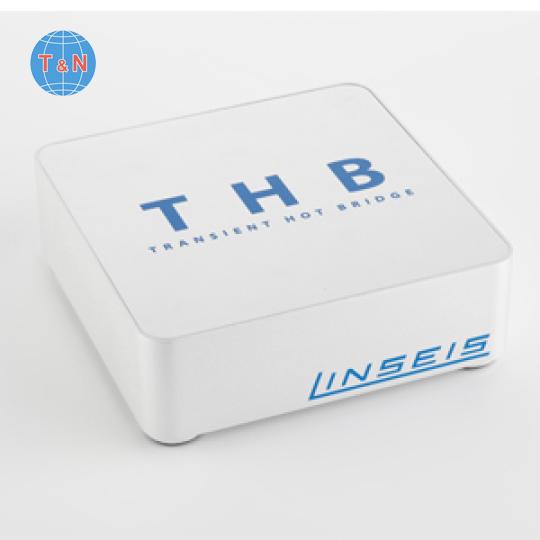

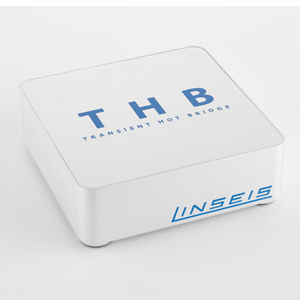

Thiết bị Transient Hot Bridge (THB) – THB/ LINSEIS

Model:
THB
Hãng sản xuất:
LINSEIS
Xuất xứ:
Germany

Danh mục:
Lượt xem:
1927

Giới thiệu
Thông số kỹ thuật
Ứng dụng và tiêu chuẩn
video
Tài liệu

This measuring instrument simultaneously delivers the three material properties thermal conductivity, thermal diffusivity and specific heat after just a few minutes, regardless of whether you have placed the corresponding sensors in bulk solids, gels, pastes or plates or immersed them in liquids.

Sample preparation of solids is as simple as it is straightforward. One plane contact surface of each of two sample halves is sufficient for the sensor. Calibration is very simple and does not need to be performed before each measurement.

The THB measures absolute values with an accuracy that does not lag behind conventional plate or LaserFlash devices.

Advantages at a glance:

Unsurpassed measurement accuracy for determining thermal conductivity
One-button solution:
- Automated measurement mode
- No specialist personnel required to operate the instrument
- No erroneous measurements due to incorrect measurement parameter input
Thermal conductivity AND thermal diffusivity
- Measurement of thermal diffusivity with very low measurement uncertainties
- Calorimeter function: Calculation of specific heat capacity
Measurements within seconds
Non-destructive measurements with half-shell sensor
Compact dimensions

Complies to the following Norms: ASTM D 5930-01, DIN ISO 2200-2, ASTM D 5334.

THB – Models: Basic, Advance and Ultimate

THB Basic

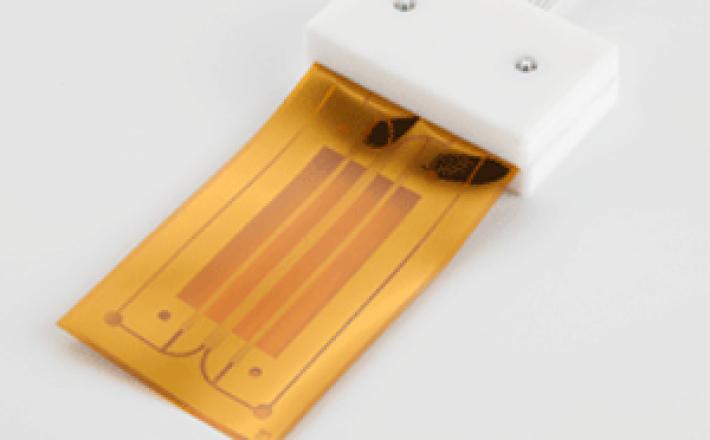

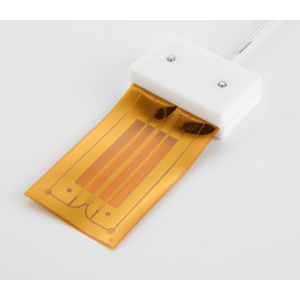

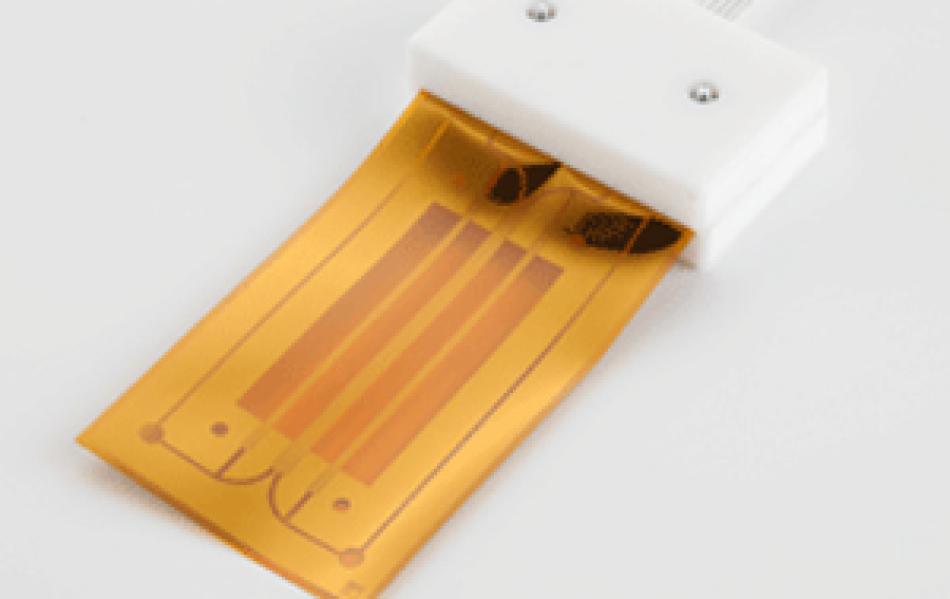

THB/B sensor included (THB/A sensor on request)
suitable for materials with low thermal conductivity (insulation and building materials)
easy installation – basic installation of the meter is done remotely

THB Advance

QSS sensor included (THB/A, THB/B or Hotpoint sensor on request)
universal measuring instrument with the widest thermal conductivity range
suitable for solids, liquids, pastes and powdery materials
suitable for laboratory service providers, institutes and universities
easy installation – basic installation of the meter is done remotely

THB Ultimate

including two sensors of your choice
high-end instrument for any requirements
suitable for almost all materials: from insulators to copper, from solids to liquids and from bulk materials to thin films
easy installation and training by qualified personnel

MODEL	THB BASIC	THB ADVANCE	THB ULTIMATE
Measuring range:
Thermal conductivity:	0,01 up to 5 W/(mK)	0,005 up to 500 W/(mK)	0,005 up to 1800 W/(mK)
Thermal diffusivity:	0,05 up to 50 mm²/s	0,05 up to 300 mm²/s	0,05 up to 1200 mm²/s
Specific heat capacity:	100 up to 5000 kJ/(m³K)	100 up to 5000 kJ/(m³K)	100 up to 5000 kJ/(m³K)
Measurement precision:
Thermal conductivity**:	better than 1 %	better than 1 %	better than 1 %
Thermal diffusivity**:	better than 4 %	better than 4 %	better than 4 %
Thermal capacity**:	better than 4 %	better than 4 %	better than 4 %
Measuring duration:
Solids:	approx. 1 up to 10 min	approx. 1 up to 10 min	approx. 1 up to 10 min
Liquids:	approx. 1 up to 120 s	approx. 1 up to 120 s	approx. 1 up to 120 s
Operating temperature:
Sensor:	–150°C up to 700°C	–150°C up to 700°C	–150°C up to 700°C
Sensor type:	Kapton, Ceramics	Kapton, Ceramics	Kapton, Ceramics
Sample size:
Smalest sample size*:	1.5 x 1.5 x 2 mm	1.5 x 1.5 x 2 mm	1.5 x 1.5 x 2 mm
Maximum sample size:	unlimited	unlimited	unlimited
