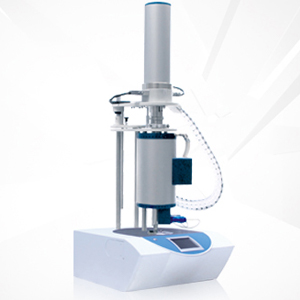

Thiết bị phân tích nhiệt cơ - TMA PT1600

Model:
TMA PT1600
Hãng sản xuất:
LINSEIS
Xuất xứ:
Germany

Thermomechanical Analysis over a wide temperature range Precise force and frequency control Vacuum tight design Temperature range: -150 up to 1400/1600°C price range: $$

Danh mục:
Lượt xem:
1789

Giới thiệu
Thông số kỹ thuật
Ứng dụng và tiêu chuẩn
video
Tài liệu

The design of the TMA PT 1600 Thermomechanical Analyzer guarantees highest precision, reproducibility and accuracy. The system was constructed to performing a variety of Thermomechanical experiments, on an array of sample shapes and sizes, over a wide temperature range, to meet all TMA needs. The system can perform either static or dynamic measurements due to a built in force/frequency generator.

Typical materials under investigation are: composite materials, glass, polymers, ceramics and metals. The variety of measuring systems allows sample geometries such as fibers, rods, films, rods or cylinders.

TMA modules

TMA / DTMA Features

With low constant load:

Linear thermal expansion evaluation
Change of volume
Phase transformation
Sinter process evaluation
Softening point determination
Transformation points
Swelling behavior
Tension

With increased constant load:

Penetration
Transition and comparison tests
3 point bending test

With dynamic load:

Visco-elastic behavior

Additional optional features:

DTA evaluation
(RCS) Rate controlled sintering software

MODEL	TMA PT 1600
Temperature range:	-150 up to 700°C RT up to 1400/1600°C
Price range:	$$
Sample size:	30 mm
Force:	up to 1/5.7/20 N
Frequency:	1 Hz
Resolution:	0.125 nm
Atmospheres:	red., inert, oxid., vac. static/dynamic
Electronics:	Integrated
Interface:	USB
