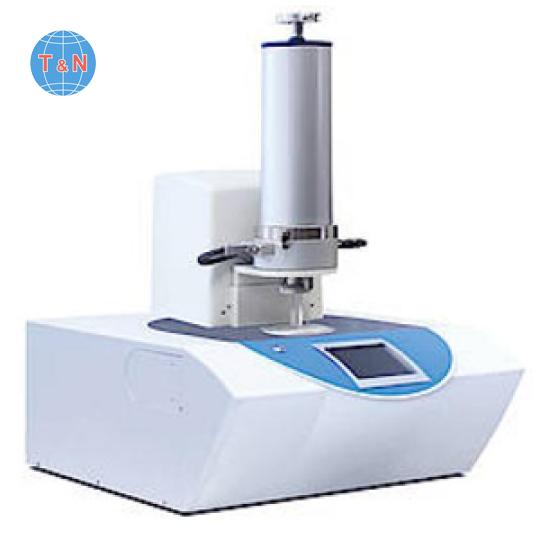

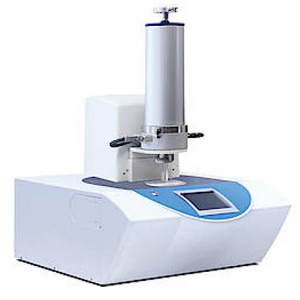

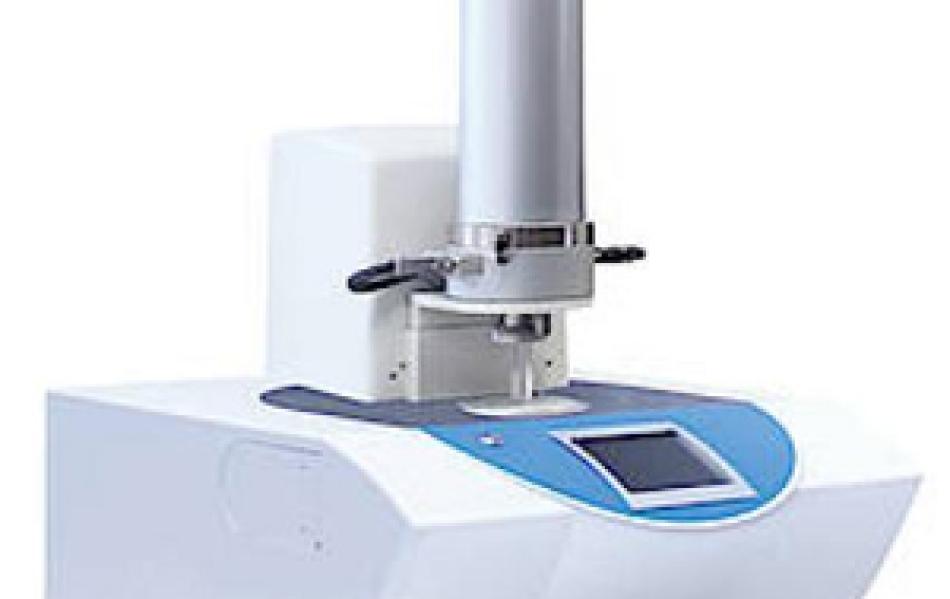

Thiết bị phân tích nhiệt cơ - TMA PT1000/LINSEIS

Model:
TMA PT1000
Hãng sản xuất:
LINSEIS
Xuất xứ:
Germany

High performace Thermomechanical Analysis (TMA) highest resolution LVDT displacement sensor with a digital resolution of 0.125nm/digit Adjustable force and frequency Temperature range: -150 up to 1000°C or special version -260 up to +220°C price range: $-$$

Danh mục:
Lượt xem:
1232

Giới thiệu
Thông số kỹ thuật
Ứng dụng và tiêu chuẩn
video
Tài liệu

The design of the LINSEIS TMA PT1000 Thermomechanical Analyzer guarantees highest precision, reproducibility and accuracy. The system was constructed to perform a variety of Thermomechanical experiments on an array of sample shapes and sizes over a wide temperature range to meet all TMA needs. The system can perform either static or dynamic measurements due to a built in force/frequency generator.

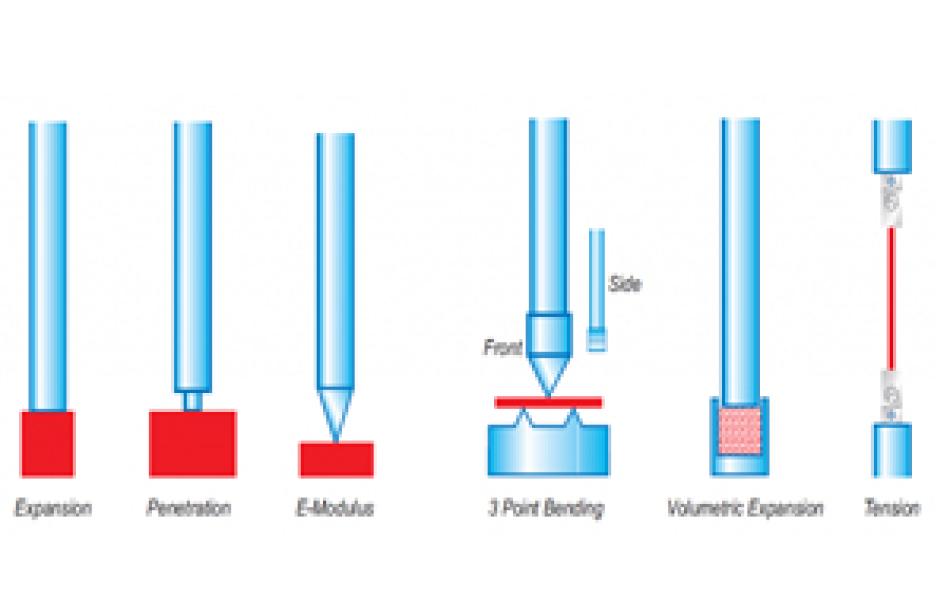

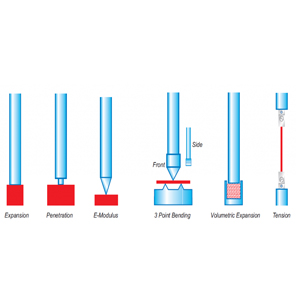

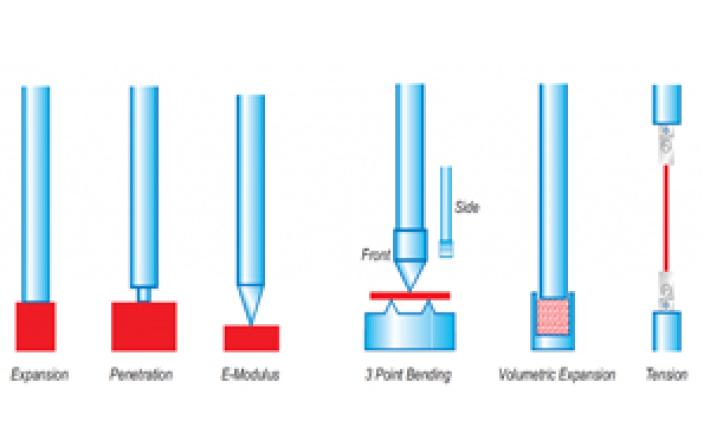

Typical materials under investigation are: composite materials, glass, polymers, ceramics and metals. The variety of measuring systems allows sample geometries such as fibers, rods, films, rods or cylinders. TMA modules

TMA / DTMA Features

With low constant load:

Linear thermal expansion evaluation
Change of volume
Phase transformation
Sinter process evaluation
Softening point determination
Transformation points
Swelling behavior
Tension

With increased constant load:

Penetration
Transition and comparison tests
3 point bending test

With dynamic load:

Visco-elastic behavior

Additional optional features:

DTA evaluation
(RCS) Rate controlled sintering software

MODEL	TMA PT1000
Temperature range:	-150 … 1000°C -260 … +220°C
Price range:	$
Sample size:	30 mm
Force:	up to 1 or 5.7 N
Frequency:	1 Hz
Resolution:	0.125 nm
Atmospheres:	red., inert, oxid., static/dyn.
Electronics:	Integrated
Interface:	USB

MODEL	TMA PT 1000 EM
Temperature range:	-150 up to 1000°C -260 up to +220°C
Price range:	$$
Sample size:	30 mm
Force:	up to 1 / 5.7 / 20 N
Frequency:	–
Resolution:	0.125 nm
Atmospheres:	red., inert, oxid., static/dyn.
Electronics:	Integrated
Interface:	USB
