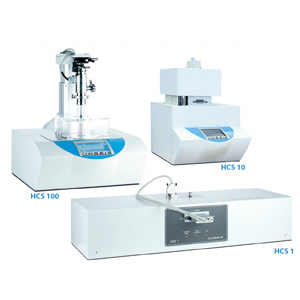

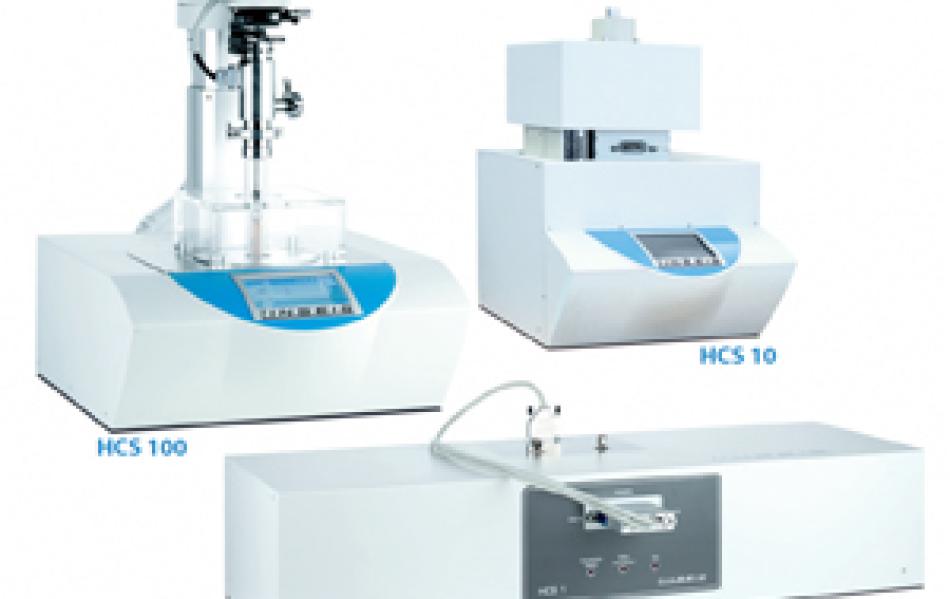

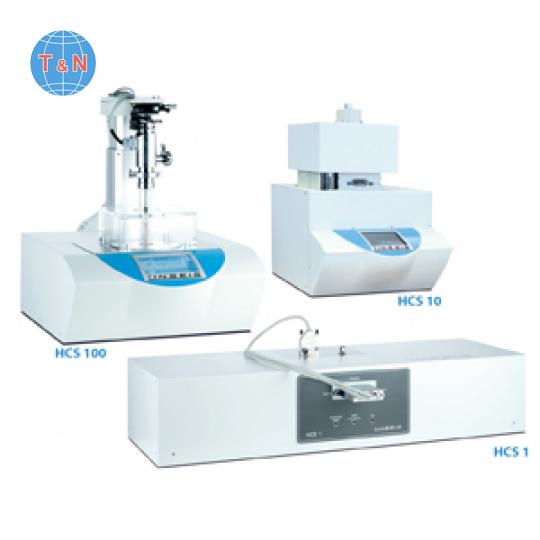

Thiết bị đo hệ số Hall - HCS 1/ 10/ 100/LINSEIS
Hệ thống HCS cho phép mô tả tđặc tinh của bán dẫn liên quan đến đặc tính dịch chuyển điện tử, cụ thể là độ linh động Hall, Nồng độ hạt tải, điện trở suất và hệ số Seebeck.
Các hệ thống có thể được trang bị với các giá đỡ mẫu khác nhau cho các yêu cầu về hình dạng và nhiệt độ khác nhau. Có sẵn tùy chọn nhiệt độ thấp (LN2) cũng như phiên bản nhiệt độ cao lên đến 800 ° C, để đảm bảo có thể bao phủ tất cả các lĩnh vực ứng dụng. Tùy thuộc vào cấu hình hệ thống, nam châm vĩnh cửu, nam châm điện làm mát bằng nước hoặc nam châm Halbach cung cấp cường độ từ trường lên đến 1 Tesla. Phần mềm toàn diện dựa trên Windows cung cấp giao diện người dùng đồ họa dễ sử dụng để kiểm soát các thông số hệ thống, xác định quy trình đo và cấu hình nhiệt độ cũng như cho phép đánh giá, trình bày và lưu trữ dữ liệu dễ dàng.
Các tính chất đo đạc:
Tính năng hệ thống:
Phiên bản nam châm vĩnh cữu (HCS 1)

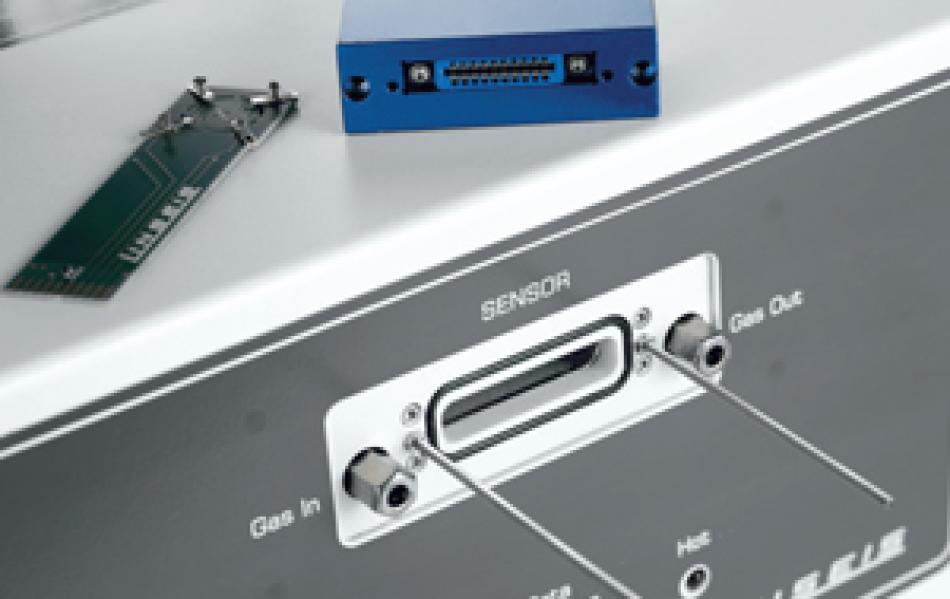

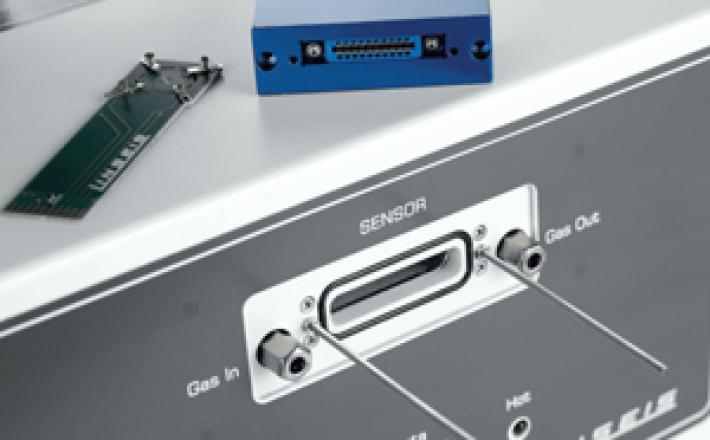

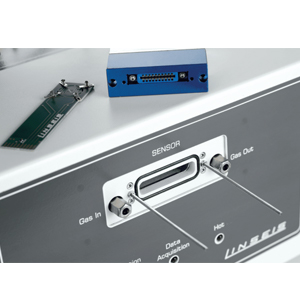

The HCS 1 stage is equipped with two magnetic circuits (Neodymium), assembled on a moveable sledge, which optionally can be automized. The system can be equipped with a low temperature as well as high temperature extension.
Phiên bản nam châm điện (HCS 10)
Optional to the permanent magnet, an electromagnet kit is available. The water cooled electromagnet is working in combination with a programmable power supply and a current reversal switch. The power supply can apply currents of up to 75 A, resulting in a variable magnetic fi eld strength of up to +/-1 T.
Tùy chọn nam châm Halbach (HCS 100)
The HCS 100 uses a magent in Halbach configuration (permanent magnet in donut configuration), in order to apply either a DC or an AC magnetic field to the sample. In combination with an AC current, provided by a Lock-in amplifier, this setup is a powerful tool for the investigation of challenging samples, as occuring offsets as well as noise can be suppressed in most cases.
MODEL | HCS 1 |
---|---|
Temperature range: | From LN2 up to 600°C in different configurations |
Magnet: | Permanent magnets up to 0.70 T DC field Pole diameter 120 mm Two magnet setup for bipolar measurement. |
Current source: | DC 1nA up to 125mA (8 decades / Compliance +/- 12V) AC 16 μA up to 20 mA and output impedance: >100 GigaOhm from 1 mHz to 100 kHz |
Voltage measurement: | DC low noise / low drift 1μV up to 2500mV, 4 decades amplification, Digital resolution: 300pV AC 20 nV up to 1V, Features: GΩ range input impedance, variable integration times and amplification |

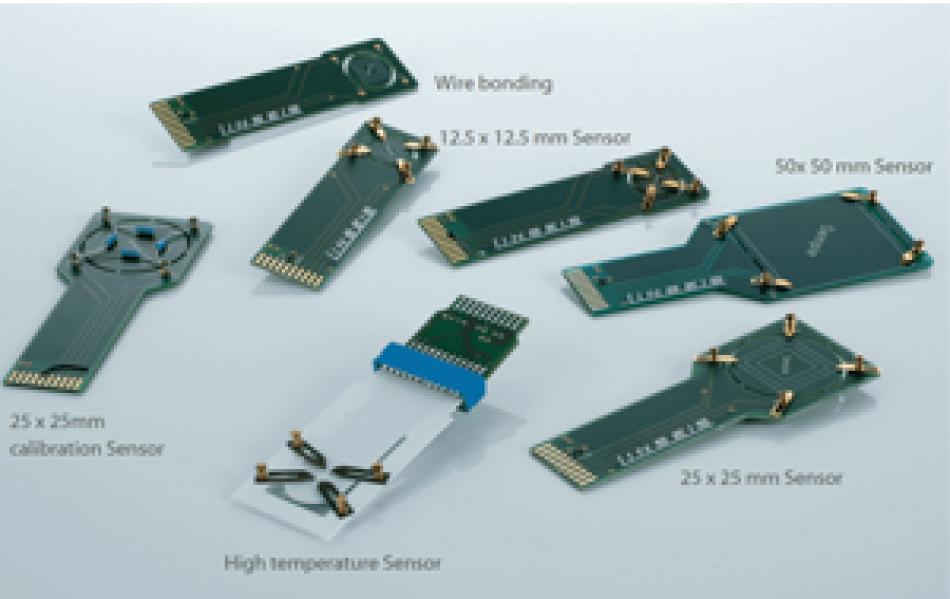

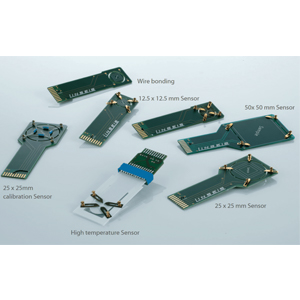

Sensors/ Sample geometry: | – from 5 x 5 mm to 12.5 x 12.5 mm, Maximum sample height 3 mm – from 17.5 x 17.5 mm up to 25 x25 mm, Maximum sample height 5 mm – from 42.5 x 42.5 mm up to 50 x 50 mm, Maximum sample height 5 mm – High Temperature board, 10x10mm, max. sample height 2mm |
Resistivity Range: | 10-4 up to 107(Ωcm) |
Carrier concentration: | 107 up to 1021cm−3 |
Mobility range: | 10-2 up to 107(cm2/Volt sec) |
Atmospheres: | Vaccum, inert, oxidizing, reducing |
Temperature precision: | 0.05°C |
MODEL | HCS 10 |
---|---|
Temperature range: | From LN2 up to 600°C in different configurations |
Magnet: | Electromagnet up to +/-1 T variable DC field, Pole diameter 76 mm, Power supply 75A / 40V. Current reversal swith for bipolar measurement. Alternative AC option for alternating magnetic field ~1T delta @ up to 0.1 Hz. |
Current source: | DC 1nA up to 125mA (8 decades / Compliance +/- 12V) AC 16 μA up to 20 mA and output impedance: >100 GigaOhm from 1 mHz to 100 kHz |
Voltage measurement: | DC low noise / low drift 1μV up to 2500mV, 4 decades amplification, Digital resolution: 300pV AC 20 nV up to 1V, Features: GΩ range input impedance, variable integration times and amplification |
Sensors/ Sample geometry: | – from 5 x 5 mm to 12.5 x 12.5 mm, Maximum sample height 3 mm – from 17.5 x 17.5 mm up to 25 x25 mm, Maximum sample height 5 mm – from 42.5 x 42.5 mm up to 50 x 50 mm, Maximum sample height 5 mm – High Temperature board, 10x10mm, max. sample height 2mm |
Resistivity Range: | 10-4 up to 107(Ωcm) |
Carrier concentration: | 107 up to 1021cm−3 |
Mobility range: | 10-2 up to 107(cm2/Volt sec) |
Atmospheres: | Vaccum, inert, oxidizing, reducing |
Temperature precision: |
0.05°C |
MODEL | HCS 100 |
---|---|
Temperature range: | RT up to 500°C |
Magnet: | Magnet up to 0.5 T (AC or DC field) Multisegment Halbach configuration, Inner diameter: 40mm, Height: 98mm |
Current output: | DC 1nA up to 125mA (8 decades / Compliance +/- 12V) AC 16 μA up to 20 mA and output impedance: >100 GigaOhm from 1 mHz to 100 kHz |
Voltage measurement: | DC low noise / low drift 1μV up to 2500mV, 4 decades amplification, Digital resolution: 300pV AC 20 nV up to 1V, Features: GΩ range input impedance, variable integration times and amplification |
Sensors/ Sample geometry: | up to 10 x 10mm, Maximum sample height 2.5 mm |
Resistivity Range: | 10-5 up to 107(Ωcm) |
Carrier concentration: | 107 up to 1022cm−3 |
Mobility range: | 10-3 up to 107(cm2/Volt sec) |
Atmospheres: | Vaccum, inert, oxidizing, reducing |
Temperature precision: | 0.05°C |
