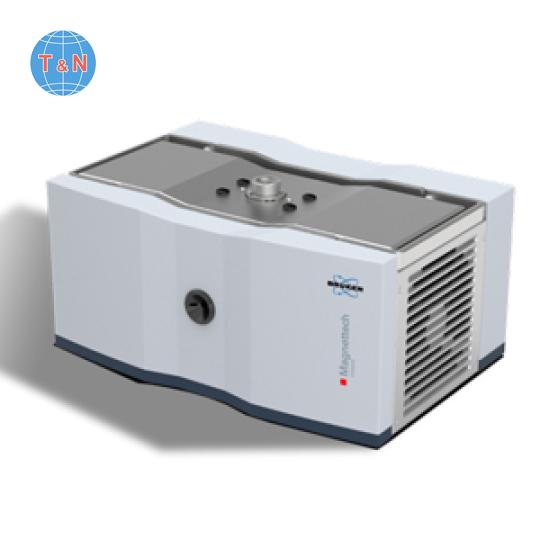

Bench-top EPR Spectrometer/ESR5000/BRUKER BIOSPIN
Expand your analytical capabilities with EPR technology. The Bruker Magnettech ESR5000 provides both academic and industrial laboratories with X-band research grade sensitivity plus a wide field range, all in a compact and easy-to-install benchtop solution.
Routine ease of use with unmatched performance
Superior sensitivity and stability
Low cost of ownership
Suitable for comprehensive range of applications
Operating frequency | X-band | |
Sensitivity | 5x1010 spins/mT (5x109 spins/G) | |
Microwave power | 1 μW – 100 mW | |
Concentration sensitivity | 50 pM | |
Field homogeneity | ± 5 μT (50 mG) within sample region | |
Field stability | 1.0 μT/h (10 mG/h) | |
Magnetic field range | 0 to 650 mT (0 to 6500 G) | |
Modulation frequency | 10 kHz and 100 kHz |
