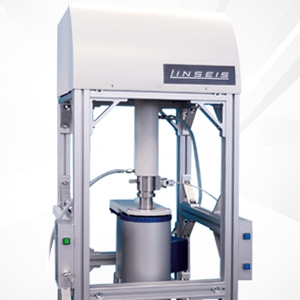

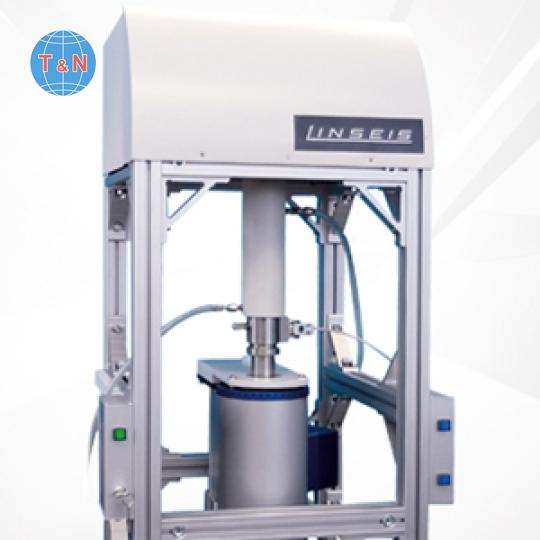

Thermogravimetric Analyzer - TGA MSB PT1/LINSEIS

Model:
TGA MSB PT1
Hãng sản xuất:
LINSEIS
Xuất xứ:
Germany

Magnetic levitation balance (MSB) separation of reactor and balance allows most challenging applications under sever temperature/gas conditions Temperature range: -196 up to 2400°C from 10E-5mbar to 150 bar price range: $$$

Danh mục:
Lượt xem:
1617

Giới thiệu
Thông số kỹ thuật
Ứng dụng và tiêu chuẩn
video
Tài liệu

With the magnetic suspension balance LINSEIS MSB PT 1, gravimetric measurements in a wide temperature and pressure range and under aggressive media can be done.

Such a magnetic suspension balance consist of:

a balance for recording the measurement values,
a suspension coupling which carries the weight of the sample,
a sensor for the position measurement of the levitation part
a control unit to control the suspension coupling

The contact-less transmission of the sample weight is realized with a levitation magnet and a holding magnet. The levitation magnet consists of a permanent magnet and the holding magnet consists of an electromagnet hanging on the balance.

The position sensor delivers the actual position of the levitation magnet and the PID controller makes a stable levitation position with the electromagnetic force as the actuating variable. Through the magnetic coupling a micro balance can be set up at environmental condition. Therefore the balance is protected from high temperatures, pressure and aggressive media

MODEL	METAL VERSION
Temperature range:	-196 up to 2400°C
Price range:	$$$
Pressure range:	UHV- Ultra High Vacuum to 150 bar
Sample weight:	10 g (standard balance)
Resolution:	1 ug
Evolved Gas Analysis:	MS/FTIR possible
Options:	Special custom versions can be realized

MODEL	GLASS VERSION
Temperature range:	up to 900°C
Price range:	$$$
Pressure range:	Vacuum to 1.3 bar
Sample weight:	10 g (standard balance)
Resolution:	1 ug
Evolved Gas Analysis:	MS/FTIR possible
Options:	Special custom versions can be realized
