PRODUCT INFORMATION:

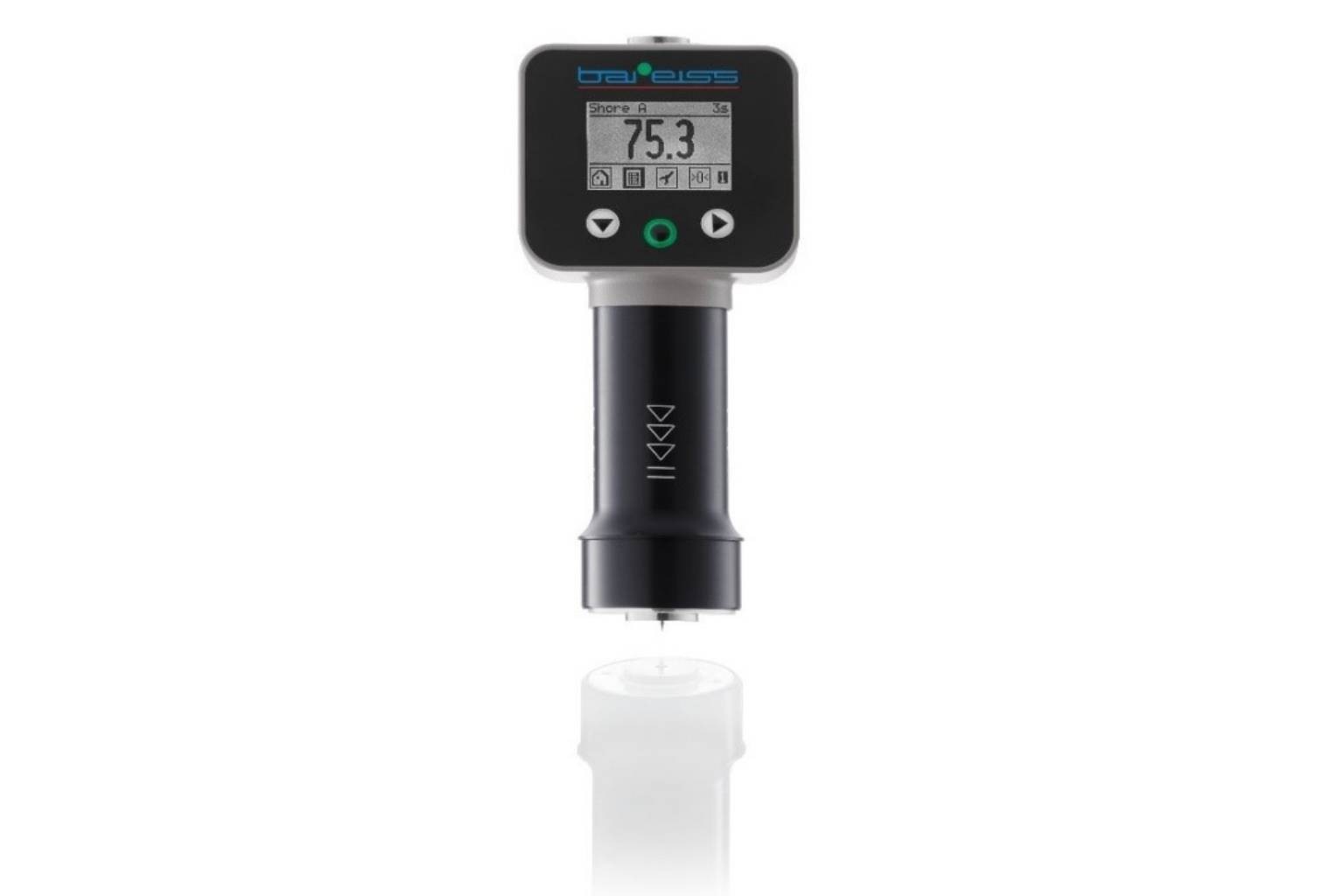

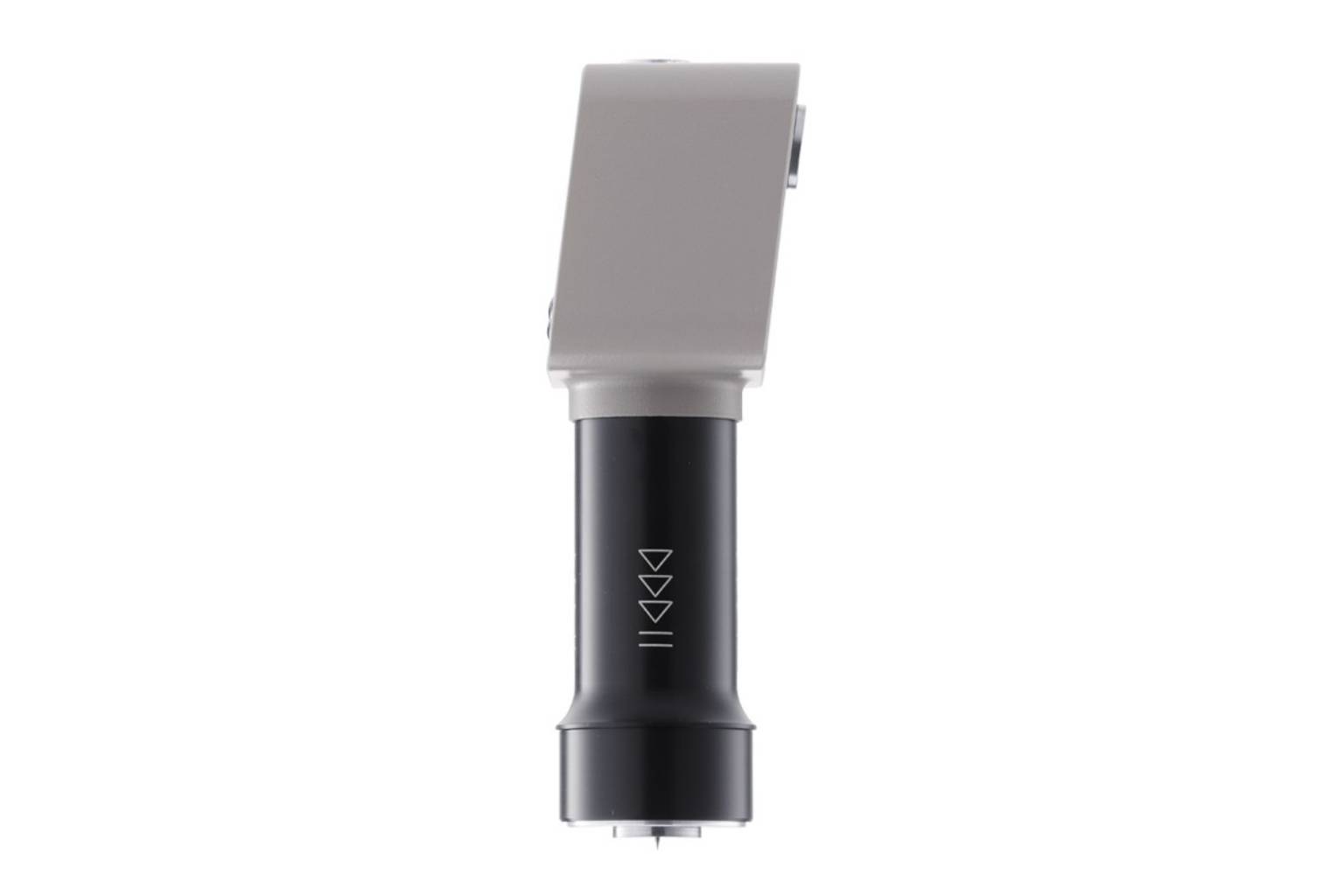

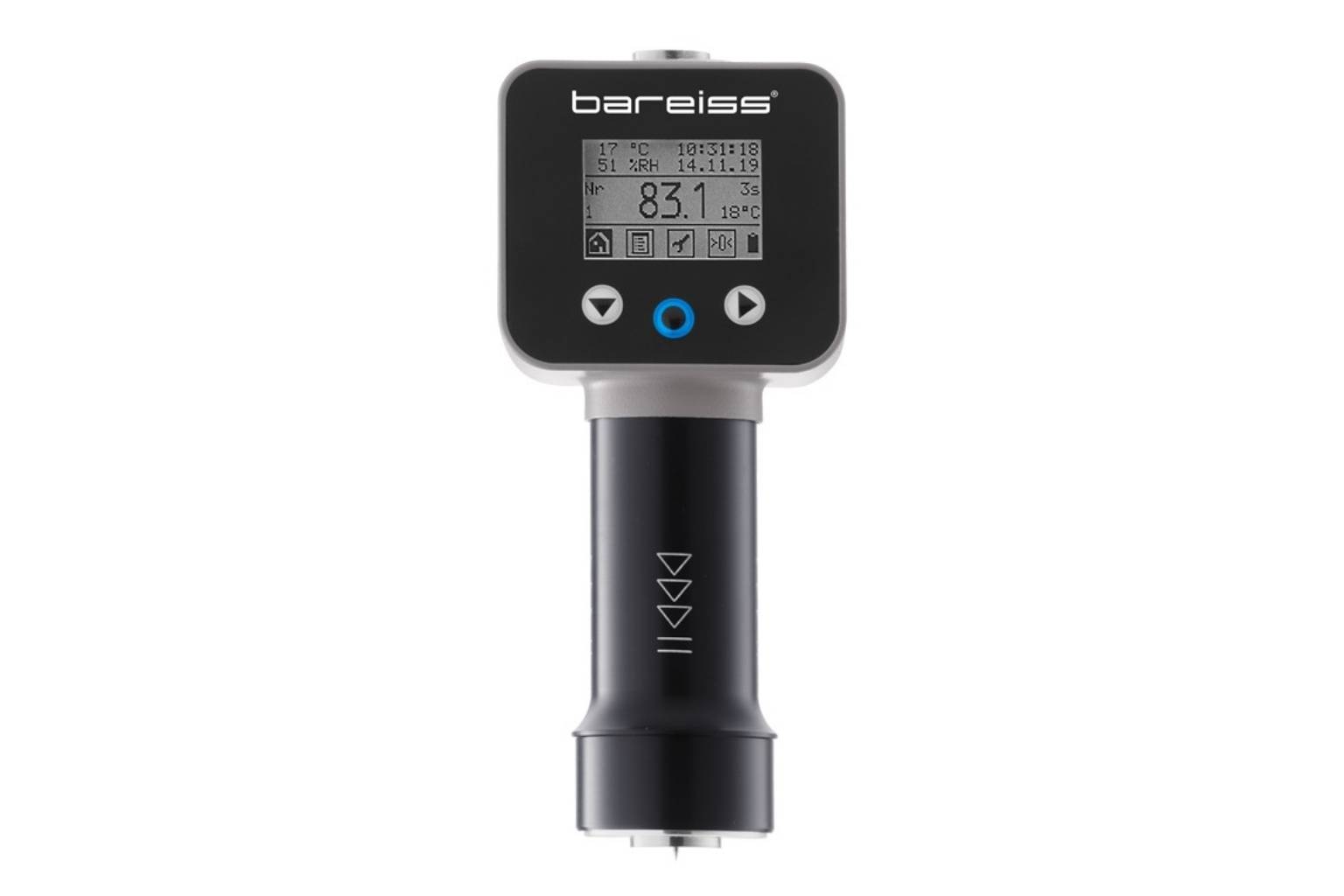

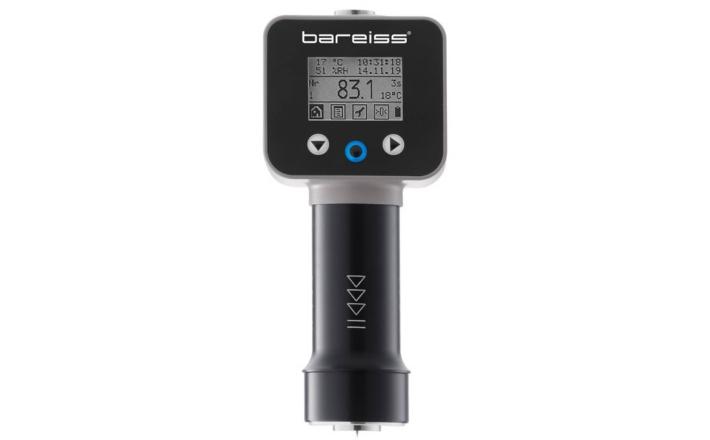

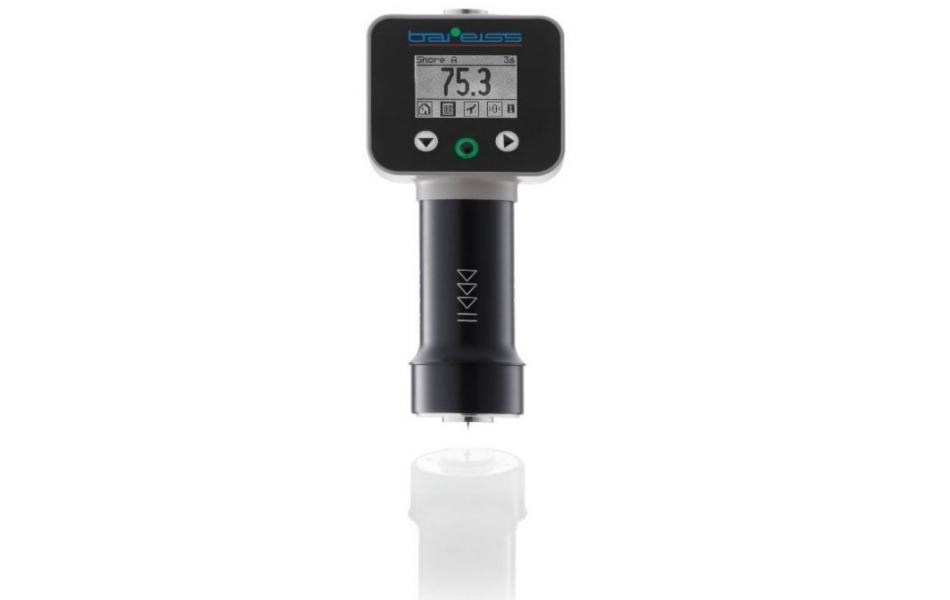

Digital Durometers Hardness Tester – HPE III Series

- The HPE III is the most advanced digital durometer hardness tester found in the market today. Not only is it recognized for its accuracy and reproducibility , but during the hardness measuring, the HPE III also registers humidity, environmental and sample temperature, as well as the date and time .

- With the handheld hardness tester, you can effortlessly measure shore hardness levels on flexible materials, polymers, and composite materials. Its sophisticated functions ensure a correct measuring process, offering protection against operating errors. This portable hardness tester has a unique and exclusive design that makes it the most reliable shore durometer on the market.

- A large LCD display for reading comfort, USB connection for data transfer, a rechargeable battery, and our patented handgrip for achieving correct measuring angle and amount of force are all standard features on the HPE III digital durometer tester.

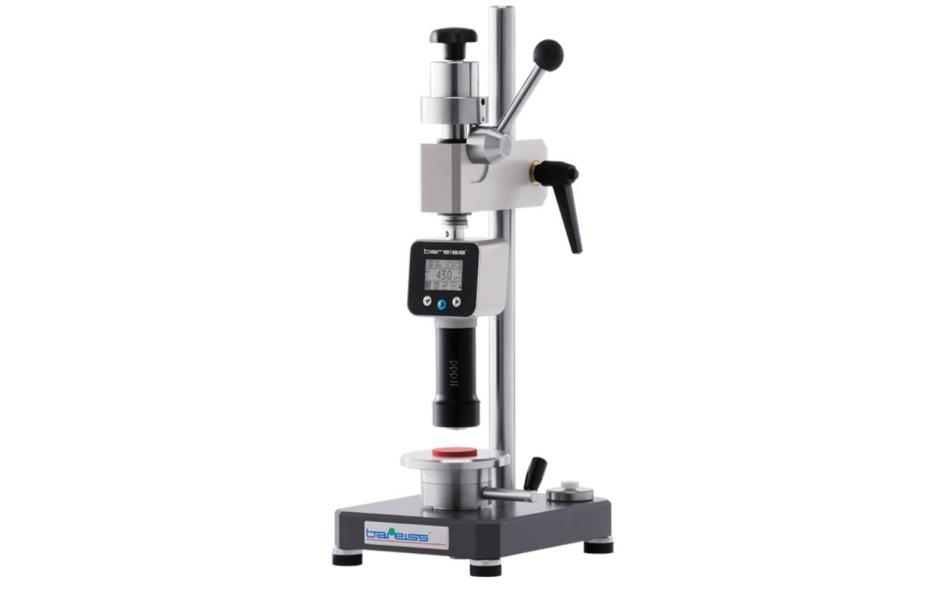

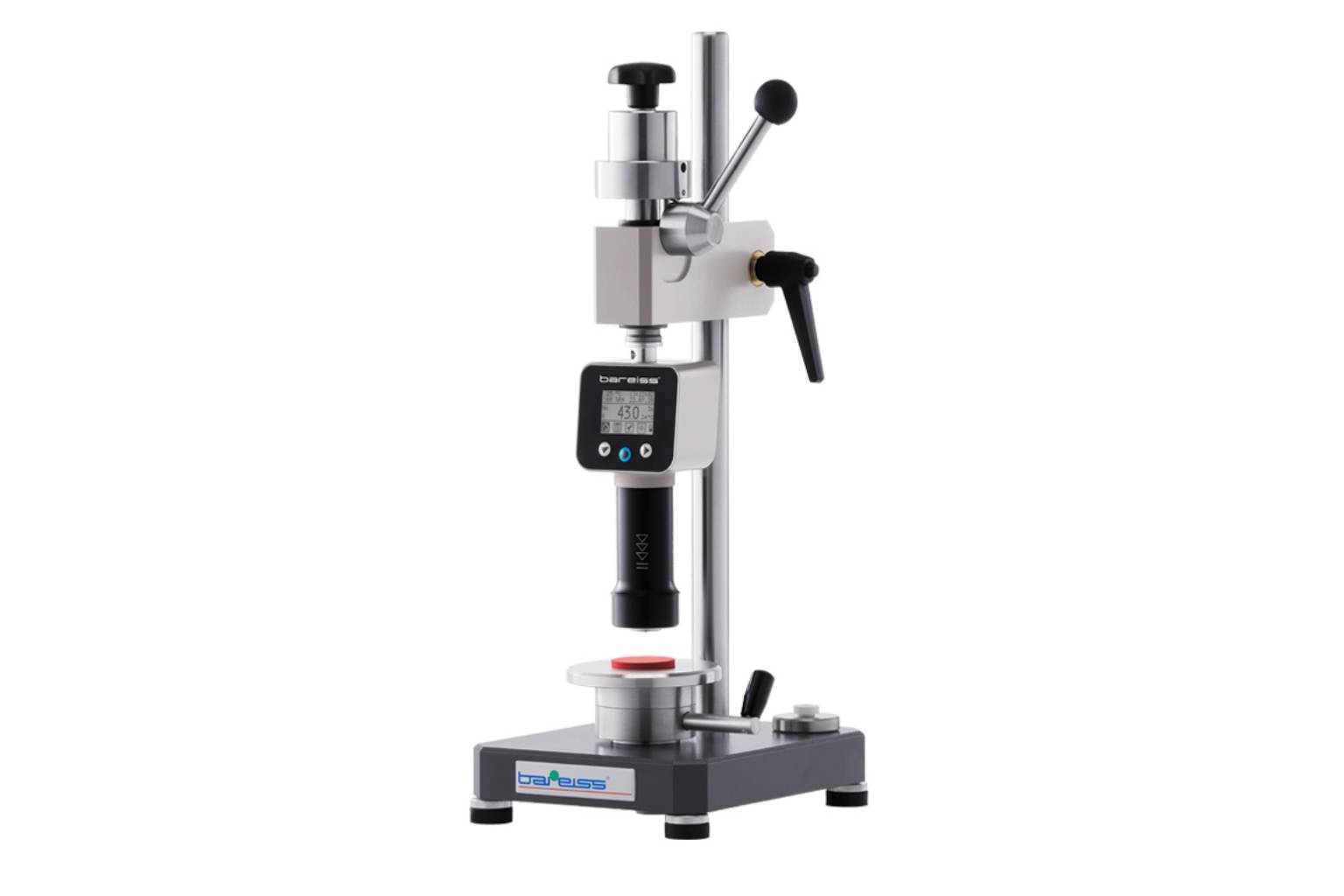

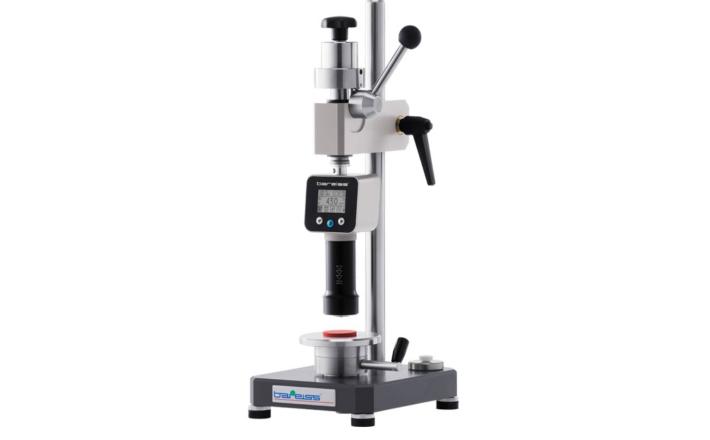

- Digital Durometers – HPE III Series shore hardness tester can be used with the Bareiss fully automatic or manual test stands to minimize the operator’s influence on the reading.

OPERATING PROCEDURE

1) This digital durometer uses a patented handgrip for achieving correct measuring angles and pressure.

2) When the sample is placed on a flat surface and the hardness tester is turned on, use the durometer handgrip to press down and record the shore hardness scale of the measurement.

3) This portable digital durometer shows the date, time of the last measurement, type of measurement & measuring time, ambient temperature, relative humidity, and max value of the last measurement taken.

4) The measurement time begins as soon as the durometer is pressed onto the sample.

5) The pressure is maintained against the sample according to the chosen dwell time and the reading is indicated with the sound of a beep.

6) The measurement is finished as soon as the durometer gauge loses contact with the sample which will be indicated by the sound of a double beep.

PRODUCT FEATURES AND BENEFITS:

1) Durability: The casing is made of aluminum alloy which provides robust structure and lightweight handling.

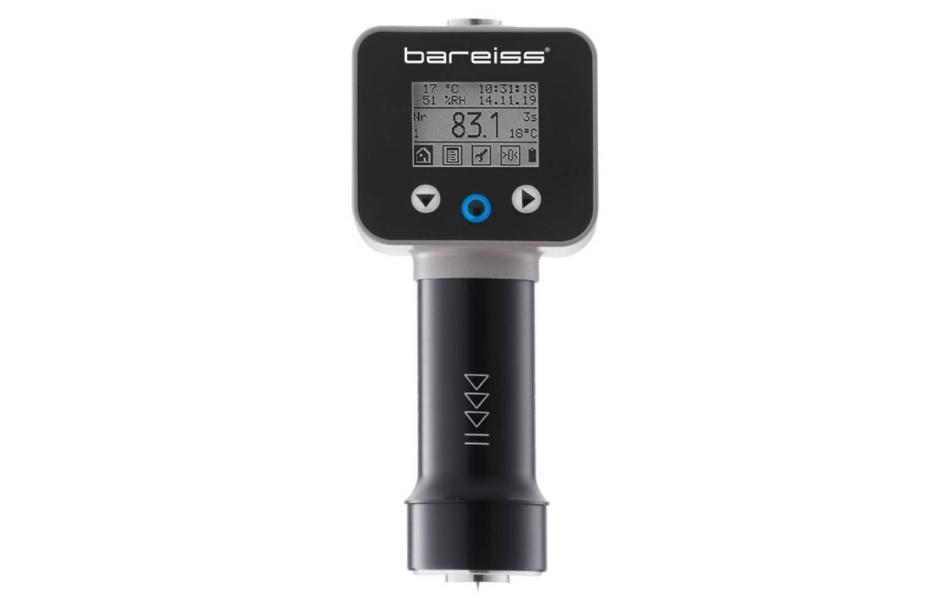

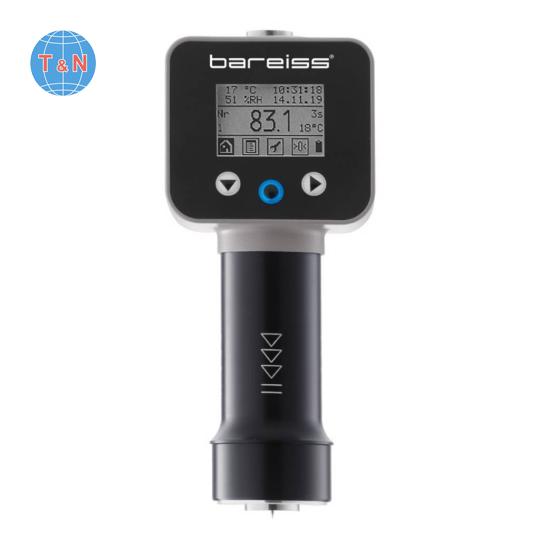

2) Large Display: The durometer gauge has a large display of 102 x 64 pixels consisting of the header for the general data information of (a) Temperature (b) Humidity (c) Date and Time. Also in the display panel are the measurement results on the test sample and navigation bar, plus the charge status of the battery.

3) Optional feature: Sensor to measure ambient temperature and humidity as well as a built-in sensor to record sample temperature if required for a particular shore hardness test.

4) Reliability: HPE III shore durometer has a patented handgrip for achieving the correct measuring angle and amount of force applied.

5) Intuitive User Interface. HPE III is designed for one-handed operation

6) Storage: 300 Historical measurements can be displayed for the hardness values and date/time when each measurement was taken.

7) Connectivity: The shore hardness tester has a serial interface and USB cable which can be connected to the pc to conveniently export in various formats or make any updates on the durometer by using the designated software.

8) Compatibility: HPE III is compatible with all Bareiss test stands. To ensure the most reliable results, the operator can perform a test according to the standard with minimum interference.

           Bareiss Digital Durometers Hardness Tester - Weight and Size Information

Package Content Kit

+ Digital Durometer, USB output cable, control ring, and power adapter in a foam fitted carrying case.

Standards

+ DIN EN ISO 868, DIN ISO 7619, ASTM D 2240

ISO/17025 Accredited Calibration Certificate

+ Official ISO/17025 accredited calibration certificates are available for all Shore scales

Software Available

+ BareissOne for data logging and analysis is available upon request

SPECIFICATIONS AND TECHNICAL DATA

Operating Temperature    0°C to + 55°C
Specimen Temperature    0°C to + 70°C
Ingress Protection    IP 50
USB Power Supply
Output   5 VDC 1000 mA
Input   100- 240 VAC 50/60 Hz 150 mA
Communication Interface
Data output   RS232
Charging cable/ communication line   RS232/ USB- Converter
Display
Graphic display   102 * 64 PIXEL
Option for sensor ambient temperature & humidity
Temperature range    -20°C to + 80°C
Humidity range     0% to 100%

APPLICATION:

Test Method Range of Application Standard Minimum material thickness[mm] Indenter(mm)
Shore A - Soft rubber, elastomers, natural rubber products, neoprene, casting resin, polyester, soft PVC, leather, pressure rollers, etc. DIN EN ISO 868 4
DIN ISO 7619, ASTM D 2240, NFT 51-174, BS903 Part. A 26 6
Shore B - Middle hard materials from rubber, typewriter roles, flat materials ASTM D 2240 6
Shore 0 - Soft elastic materials, pressure rolls, middle firm, textile fabrics, nylon, orlon, perlon, rayon ASTM D 2240 6
Shore A0 Shore E - Soft foam, leather covers DIN ISO 7619 ASTM D 2240 6
M Shore A Shore A Bareiss Standard 1.5
Shore D - Hard rubber, hard plastics, acrylic glass, polystyrene, rigid thermoplastics, Resopal, pressure rollers, Vinyl plates, cellulose- Acetate, etc. DIN EN ISO 868 4
DIN ISO 7619, ASTM D 2240, NFT 51-174, BS903 Part. A 26 6
M Shore D/C/D0 Shore D 0,5 Bareiss Standard 1
Shore C - Plastics and middle hard rubber materials ASTM D 2240 6
Shore D0 - Plastics and middle hard rubber materials ASTM D 2240 6
Shore 00 - Sponge- and foam rubber, cellular rubber, silicone ASTM D 2240 6
Shore 000 - Sponge- and foam rubber, cellular rubber, silicone ASTM D 2240 6
Shore 000 S - Sponge- and foam rubber, cellular rubber, silicone ASTM D 2240 6
Shore AM/M Shore A DIN ISO 7619 ASTM D 2240 1.5
