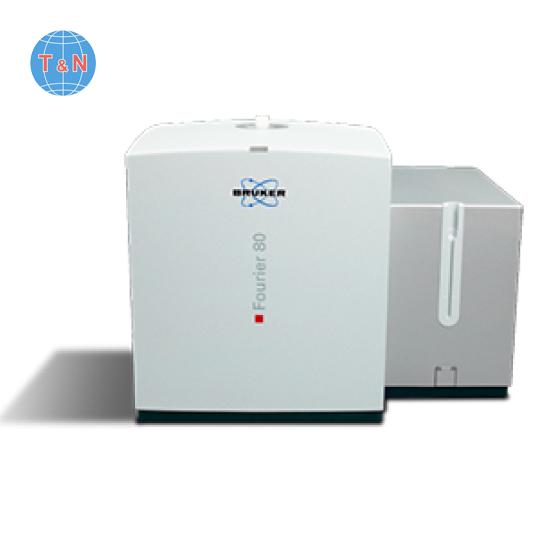

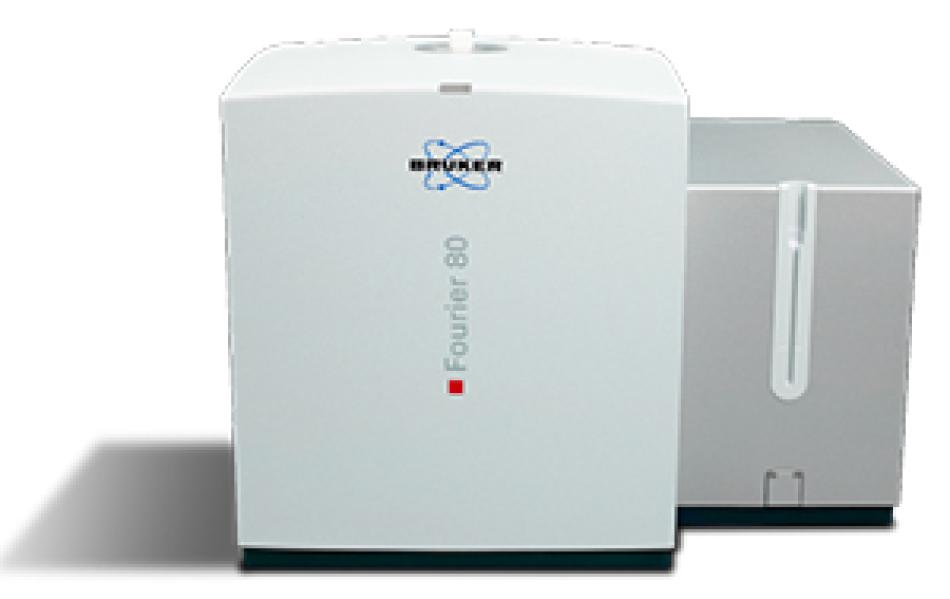

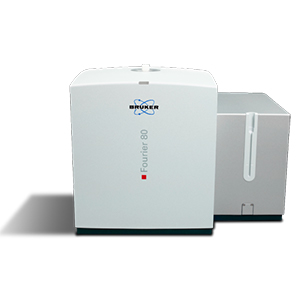

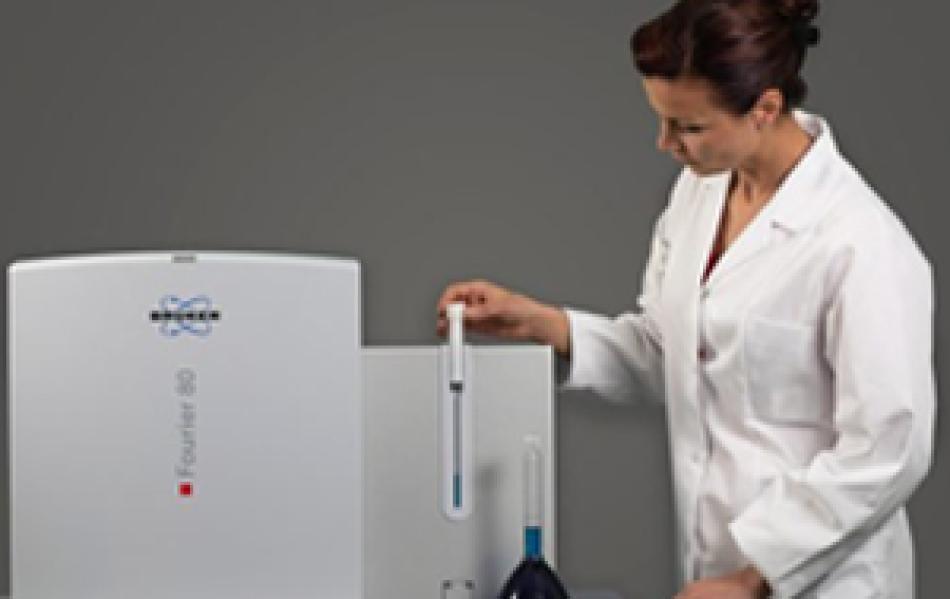

Máy cộng hưởng từ để bàn (Benchtop NMR)/Fourie 80/BRUKER BIOSPIN
Advance your analytical capabilities and strengthen your curriculum with high-performance NMR in an easy-to-use, compact benchtop system. Tackle the challenges. Remove the barriers. Advance discovery.
Operating Frequency: | 80 MHz (1H) |
Nuclei: | 1H-only, 1H/13C, 1H/31P or 1H/129Xe (contact us for more) |
1H Sensitivity: | > 160:1 for 1% Ethyl Benzene (1H/13C system, incl. pulsed field gradient) |
Gradient strength: | > 0.25 T/m (25 G/cm) |

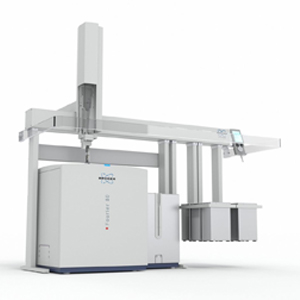

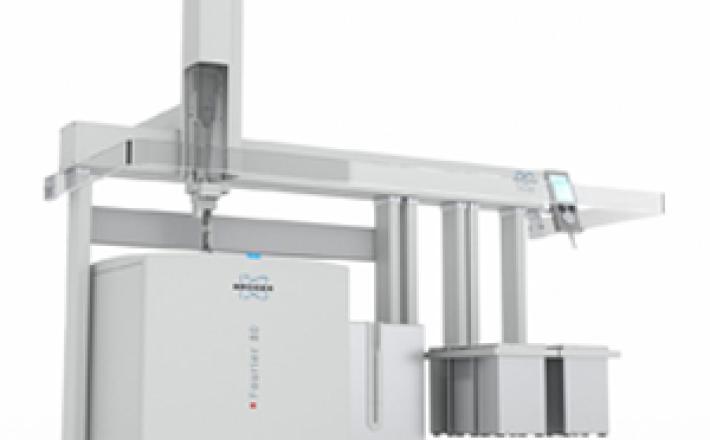

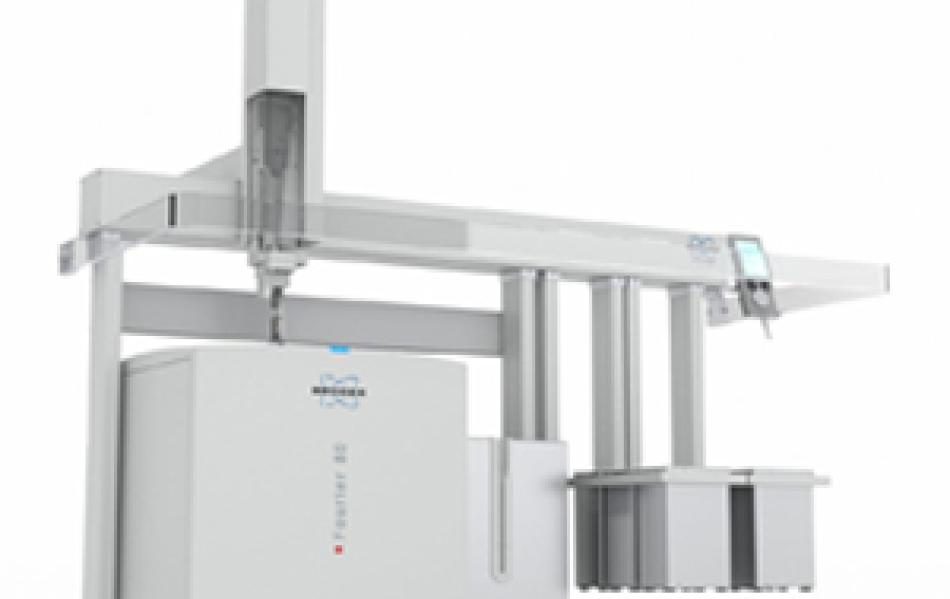

Automation: | PAL sample changer; up to 120 samples + 12 reference samples |
1H Resolution: | < 0.4 Hz @ 50% peak height < 16 Hz @ 0.55% peak height |
Digital Lock: | External, no deuterated solvents needed |

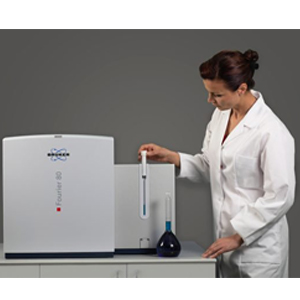

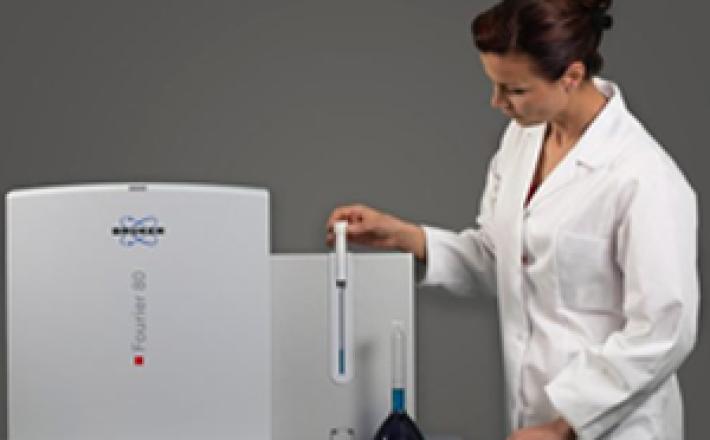

Sample Tubes: | standard 5mm diameter, 7’’-long NMR tubes |
Dimensions: | ~50 cm x 70 cm x 60 cm (Height x Width x Depth) |
Weight: | ~94 kg |
Lab Temperature: | 18-28°C |
Lab Infrastructure needed: | no liquid nitrogen or helium required no water cooling required power consumption typically <300 W power: 100 – 240 V, 50 – 60 Hz no additional venting required |
